Heavy Duty PU Wheel About

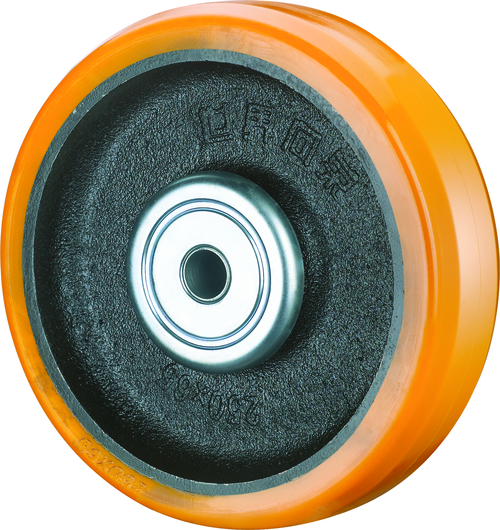

Extra Heavy Duty PU Wheel can be availed in 125 mm, 150 mm, 200 mm and 300 mm dimension based choices. Per piece load capacity of this wheel is 700 to 2000. Tread width of this cast polyurethane wheel ranges between 50 mm to 75 mm. Hardness of this Heavy Duty PU Wheel ranges between 80 to 90 Shore A. Standard of this PU product has been tested on the basis of its dimension, strength, longevity, performance, resistant attributes and design precision.
| Wheal dia(MM) | Tread Width(MM) | Wheal material | load capacity/per pcs | loading height |
| | | | | |
| 125 | 50 | | 700 | 175 |
| 150 | 52 | Polyurethane | 850 | 200 |
| 200 | 55 | | 1000 | 251 |
| 300 | 75 | | 2000 | 355 |
Engineered for Heavy-Duty PerformanceConstructed with a heavy-duty steel core encased in premium polyurethane (PU), this wheel excels in high-load conditions. Its abrasion-resistant, non-marking tread ensures longevity and immaculate floor surfaces. The reliable double ball-bearing design guarantees consistent smooth rotation, making it ideal for frequent, demanding use in manufacturing and warehousing environments.
Versatile and Customizable DesignWith color options in red and yellow and the ability to select specific wheel diameters (25/38/50/75 mm), this PU wheel offers flexibility to match diverse operational needs. The plate mount and wide top plate (115 mm x 100 mm) ensure secure attachment, while 360-degree swivel rotation allows effortless navigation, even in tight spaces. Optional brakes add a layer of safety for material handling applications.
FAQ's of Heavy Duty PU Wheel:
Q: How can I install the Heavy Duty PU Wheel with a plate mount on my equipment?
A: Installation is straightforward due to the plate mounting system. Align the top plate (115 mm x 100 mm) with your equipment's mounting area, then secure it using bolts that fit the 12 mm holes and the 85 mm x 72 mm hole spacing. Ensure all bolts are tightened evenly for optimal safety and performance.
Q: What makes this PU wheel suitable for industrial trolleys and material handling equipment?
A: The heavy-duty steel core, high load capacity (800 kg - 1000 kg), abrasion-resistant PU tread, and non-marking flat tread design make it perfect for frequent, rigorous use in industrial environments. Its low-noise operation and excellent floor protection further enhance its suitability for warehouses and manufacturing units.
Q: When should I consider choosing the optional brake feature for these wheels?
A: Select the optional brake if your application requires stationary positioning or added safety during loading and unloading. The braking mechanism provides stability on inclines or uneven surfaces, making it a valuable feature for environments with strict safety requirements.
Q: Where can this heavy-duty PU wheel be used most effectively?
A: This wheel is ideal for use in factories, warehouses, and logistics centers across India. Its ability to withstand temperatures from -20C to +80C and its robust construction make it effective on trolleys, carts, and other equipment in a wide range of industrial settings.
Q: What benefits does the non-marking PU tread provide for facility floors?
A: The non-marking polyurethane tread prevents scuffing, scratching, or marking of floors, maintaining a clean and professional appearance. This feature is especially valuable in facilities with delicate or polished flooring surfaces.
Q: How does the 360-degree swivel rotation benefit daily operations?
A: The 360-degree rotation allows for effortless and precise maneuvering of trolleys and carts, even in confined areas. This improves workflow efficiency and reduces physical strain on operators, contributing to safer and more productive material handling.
